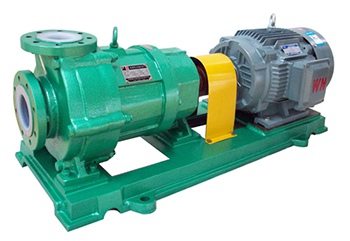

CQB-FA Series Long -bracket Magnetic driven coupled pump

it is the application of Modern Magnetic theory which use of permanent magnets to achieve non-contract indirect transmission of chemical process pump .

CQB Series Chemical process pump is to prevent running , run, drip ,drain phenonmenon , the elimination of environmental pollution , and create : "free -leakage workshop. the realization of security , the ideal of civilized production pump.


Pump Solution : it widely use in pertrochemical .acid ,alkaline ,non-ferrous metal smelting ,automotive manufacuring process

of pickling ,rare earth separation , pesticides, dyes ,medicine ,paper-making ,electro-plating ,radio and other industries.

MODEL SENSE:

CQB50-32-160FA

CQB ----it is magnetic driven pump code.

50---- it is pump inlet diameter are 50mm

32--- it is pump outlet diameter are 32 mm

160---it is pump impeller diameter are 160mm.

F --- IT it pump overflow wetted  parts are made of  Fluorine plastic FEP .

A--- it is show pump are coupling connection with common foundation .

Specification sheet


Model No	Flow Capacity (m3/h)	Pump Head (m)	Efficiency (%)	Inlet Outlet Diameter(mm)	rotatingg speed(R/min)	Power(KW)	NPSH(M)	Weight(kg)
CQB50-32-160FA	12.5	32	39	50*32	2900	4	3.5	140
CQB50-320200FA	12.5	50	31	50*32	2900	7.5	3.5	210
CQB65-50-160FA	25	32	51	65*50	2900	7.5	4	210
CQB65-40-200FA	25	50	48	65*40	2900	11	4	250
CQB80-65-160FA	50	32	60	80*65	2900	11	4	285
CQB80-50-200FA	50	50	60	80*50	2900	18.5	4	320
CQB100-80-160FA	100	32	58	100*80	2900	18.5	5	350

Notement :

it wouldn"t transfer liquids contained Ferromagnetic impurities and hard impurities ..

if pumping solution contained Magnetic particle, it is must add magnetic filter .

if pumping solution of hydrofluoric Acid , it is need choose main spindle with pressureless Sintered Siico Carbide Ceramics (SSIC).


if you have any puimping solution ,please let us to know.
